Shrimp (Pandalopsis dispar) waste hydrolysate as a source of novel β–secretase inhibitors

Shrimp processing by–products (including shells, heads and tails recovered from hand–peeling of cooked shrimp Pandalopsis dispar) in frozen form were donated by Albion Fisheries Ltd. (Vancouver, BC, Canada). Shrimp wastes hydrolysis was performed under experimental conditions according to Cheung and Li-Chan (2010). Protamex® (Bacillus amyloliquefaciens and Bacillus licheniformis, 1.5 AU/g), a product from Novozymes North America Inc. (Salem, NC), was donated by Neova Technologies Inc. (Abbotsford, BC, Canada). β–secretase and MCA–EVKMDAEFK–(DNP)–NH₂ (β–secretase substrate I) was purchased from Sigma Chemical Co. (St. Louis, MO). All other reagents used in this study were reagent grade chemicals.

SWHs were prepared using Protamex enzyme for hydrolysis of the shrimp waste under varying conditions of water:substrate ratio (1:1, 1:1.5, 1:2 or 1:2.5), percent enzyme (2, 4, 6 or 8 % w/w protein contents of shrimp processing by–products) and time of hydrolysis (1, 4, 8 or 24 h) (Table 1). The lyophilized hydrolysates were stored at −80 °C until use. The SWHs was provided from Li–Chan’s laboratory in UBC, Canada.

β–Secretase inhibitory activity was measured following Johnston et al. (2008), using a commercially available fluorogenic substrate, MCA–EVKMDAEFK–(DNP)–NH₂. This substrate corresponded to the wild–type APP sequence, derivatised at its N–terminus with a fluorescent 7–methoxycoumarin–4–yl acetyl (MCA) group, and on its C–terminal lysine residue with a 2,4–dinitrophenyl (DNP) group. In the intact peptide the fluorescence of the MCA group was abolished by internal quenching from the DNP group. Upon cleavage by β–secretase activity the MCA fluorescence could be detected. Assays were performed in 96–well black plates using a Spectrofluorometer (Molecular Devices). β–secretase and β–secretase substrate I were incubated in a final volume of 200 μl in assay buffer (50 mM sodium acetate, pH 4.5). The hydrolysis of β–secretase substrate I was followed at 37 °C for 30 min, by measuring the accompanying increase in fluorescence. Readings (excitation 325 nm, emission 393 nm) were taken every 60s. The inhibition ratio was obtained by the following equation: Inhibition (%) = [1– {(S–S0)/(C–C0)} × 100], where C is the fluorescence of a control (enzyme, assay buffer, and substrate) after 60 min of incubation, C0 is the fluorescence of control at zero time, S is the fluorescence of tested samples (enzyme, sample solution, and substrate) after 60 min of incubation, and S0 is the fluorescence of the tested sample at zero time. All data are the means of triplicate experiments.

The potent fraction as determined from β–secretase inhibitory activity assay was further purified by size exclusion chromatography on a Sephadex G–25 gel filtration column (25 × 750 mm) equilibrated with distilled water. Separated fractions were monitored at 215 nm, collected at a volume of 7.5 ml and measured for β–secretase inhibitory activity. The most active fraction was then injected into a preparative reversed phase HPLC column (YMC, ODS C18, 10.0 × 250 mm, 5 μm) and separated using a linear gradient of acetonitrile (0–40 % v/v) containing 0.1 % trifluoroacetic acid (TFA) on an HPLC system (Agilent Technologies, USA). The peak showing potent inhibitory activity was finally purified into a single peptide on a reversed phase HPLC analytical C18 column (4.6 × 250 mm, 5 μm) using a linear gradient of acetonitrile (0–20 % v/v) in 0.1 % TFA.

To identify molecular weight and amino acid sequence of the purified peptide, all MS/MS experiments were performed on a Q–TOF tandem mass spectrometer (Micromass Co., Manchester, UK) equipped with a nano–ESI source. The peptide solution was desalted using Capcell Pak C18 UG120 V (4.6 × 250 mm, 5 μm, Shiseido, Tokyo, Japan). The purified peptide dissolved in methanol/water (1:1, v/v) was infused into the ESI source and molecular weight was determined by doubly charged (M + 2H)²⁺ state in the mass spectrum. Following molecular weight determination, peptide was automatically selected for fragmentation and sequence information was obtained by tandem MS analysis.

For the Lineweaver-burk plot, the data were plotted as mean values of 1/v, the inverse of the increase in fluorescence intensity per min (min/DRFU) of three independent tests with different concentrations of fluorescent substrate. The assay was performed in the presence of purified peptide (final concentration of 0, 25, 50 and 100 μg/ml).

The peptides were chemically synthesized in the peptide synthesis facility, PepTron Inc. (Daejeon, Korea). The peptides were synthesized using the Fmoc–solid phase method with a peptide synthesizer (PeptrEX–R48, Peptron Inc., Daejeon, Korea). These synthetic peptides were purified by RP–HPLC using a Capcell Pak C18 column (Shiseido, Japan). Elution was performed with a water–acetonitrile linear gradient (0–80 % of acetonitrile) containing 0.1 % (v/v) TFA. Elution was monitored at 220 nm on HPLC instrument (Prominence HPLC, Shimadzu, Tokyo, Japan).

Each experiment was performed at least three times and results were presented as the mean ± SD. Statistical comparisons of the mean values were performed by analysis of one–way ANOVA (SPSS 12, IBM, IL, Chicago, USA), followed by Duncan’s multiple–range test using SPSS (12) software. Differences were considered significant at p < 0.05.

β–secretase inhibitory activity was measured using an assay that we developed and validated using a commercially available fluorogenic substrate. Figure 1a shows the kinetics of β–secretase inhibitory activity from SWHs and a control. A fluorescent signal (in relative fluorescence units) was found over 0–60 min with hydrolysates (or buffer) at 0.5 mg/ml and 10 mM β–secretase substrate I. The fluorescence of β–secretase incubated in the absence of membrane protein was subtracted at each time point. There appeared to be a linear increase in signal beginning after 5 min that continued for up to 1 h. Among hydrolysates, SWH24 was particularly potent. As seen in Fig. 1b, the lowest IC₅₀ value was exhibited by SWH24 at 0.54 mg/ml. These discrepancies may be attributed to differences in substrate specificity and conditions for optimal activity of the enzyme preparations, as well as to differing peptide sequences and structural factors affecting reactivity of the protein substrates. The findings underline the importance of selecting the appropriate combination of experimental conditions to release bioactive peptide sequences (Cheung and Li–chan 2010). Protamex hydrolysates has previously been reported to be effective in various bioactivity such as producing potent ACE inhibitory peptides from marine source (He et al. 2007).

Fig. 1. Effect of shrimp waste hydrolysates (SWHs) on the inhibitory activity of β–secretase. a Relative fluorescence unit of SWHs under 10 mM β–secretase substrate I was incubated with hydrolysates (0.5 mg/ml) or buffer (control). b IC₅₀ value (mg/ml) of SWHs. Letters indicate significantly (P < 0.05) different averages (ANOVA, Duncan’s test)

Download Original Figure

The use of Sephadex G–25 chromatography led to a fraction with greatly improved β–secretase inhibitory activity (Fig. 2–I). First, fraction D from SWH24 had the highest β–secretase inhibitory activity, with an IC₅₀ value of 0.19 mg/ml. The lyophilized fraction D was further separated into eight sub–fractions by HPLC on an ODS column with a linear gradient of acetonitrile (0–50 %) (Fig. 2–II). Finally, the purified fraction B2 was found to have the highest β–secretase inhibitory activity (Fig. 2–III). The active fraction B2 was subjected to re–chromatography on the HPLC column using a isocratic elution with 22.5 % acetonitrile for 30 min, at a flow rate of 1.0 ml/min (Fig. 2–IV). The IC₅₀ value of this purified peptide was 58.31 μg/ml. The β-secretase inhibitory activity of purified peptide was increased by 10.52-fold compared to the SWH24 (0.54mg/ml), using the four step purification procedure.

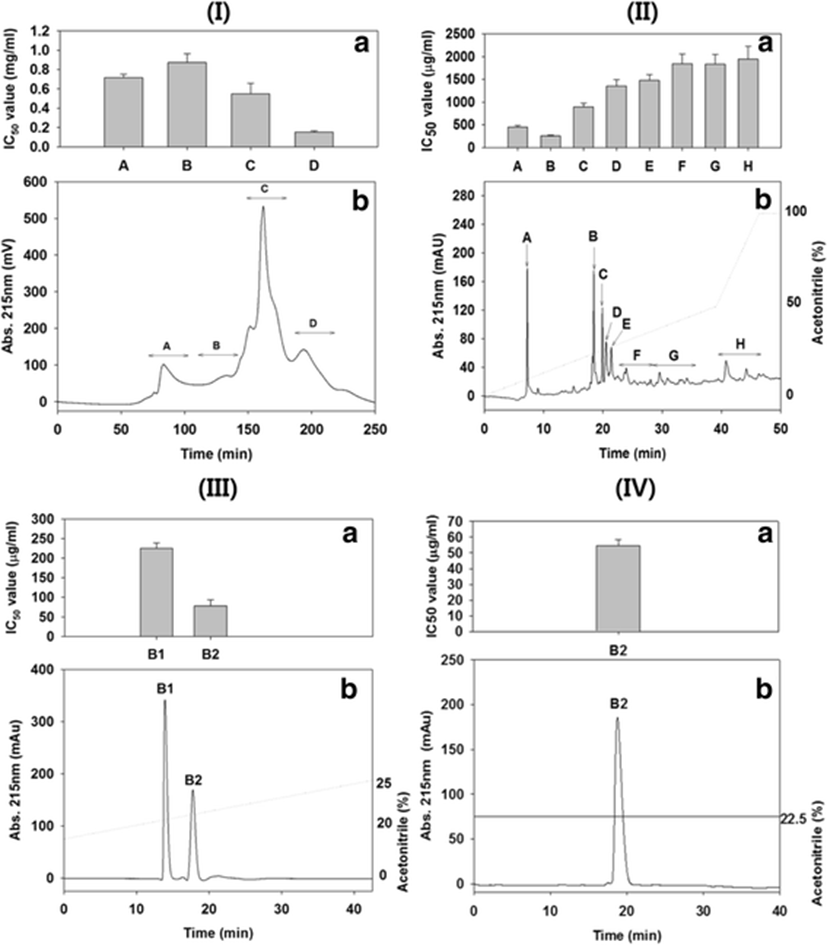

Fig. 2. Purification steps of β–secretase inhibitory peptide from SWH24 by Sephadex G–25 column chromatography and HPLC. I Sephadex G–25 Gel filtration chromatogram of hydrolysates prepared with SWH24 (b, lower layer). Separation was performed with 1.5 ml/min and collected at a fraction volume of 7.5 ml. The fractions isolated by Sephadex G–25 Gel column were separated (A ~ D) and β–secretase activity determined as upper panel (a). II,III,IV HPLC chromatogram of potent β–secretase inhibitory activity of separated fraction from previous step. Separation was performed with linear gradient of acetonitrile at a flow rate of 1.0 ml/min and Grom–sil 120 ODS–5 ST column (5 μm, 10 × 250 mm). Elution was monitored at 215 nm (b, lower layer). The fractions showing β–secretase inhibitory activity were determinded IC₅₀ (mg/ml) as shown in upper layer (a)

Download Original Figure

The amino acid sequence of the purified β–secretase inhibitory peptide were identified using MS/MS. For SWH24, the sequence was found to be Asp–Val–Leu–Phe–His (629 Da) for fraction B2, with an IC₅₀ value of 92.70 μM (Fig. 3). The amino acid sequence of this peptide is critical in its β–secretase inhibitory activity. Kimura et al. (2010) investigated the synthetic β–secretase inhibitor, KMI–370 (IC₅₀ value = 3.4 nM), whose activity was greater than that of the purified peptide (IC₅₀ value= 92.70 μM). Because its molecular weight was much smaller than those of the others, it was considered suitable for absorption in the intestine. Lee et al. (2007) found that the amino acid sequence of a purified β–secretase inhibitor peptide from Saccharomyces cerevisiae was Gly–Pro–Leu–Gly–Pro–Ile–Gly–Ser with N–terminal sequence analysis. The molecular weight of the purified β–secretase inhibitor was estimated to be 697 Da by LC–MS, and its β–secretase inhibitory activity IC₅₀ value was 2.59 μM. In spite of having the highest inhibition efficiency, they reported that this octapeptide needs a reduced molecular weight to overcome metabolic instability. The purified β–secretase inhibitory peptide acted competitively with a substrate according to the Lineweaver–burk plots (Fig. 4). This strongly suggests that the purified peptide might have an affinity for the active site of an enzyme where the substrate also binds; the substrate and inhibitor compete for access to the enzyme's active site. Derivatives of these peptides are expected to be useful in the prevention of AD through the development of novel peptidic inhibitors. Availability of protein/ligand structures has opened up the possibility of structure–based design of β–secretase inhibitors. Prototypical aspartic acid protease inhibitors are peptides of high molecular weight, and contain a secondary alcohol that acts as a transition-state mimetic via the formation of hydrogen bonds with the catalytic aspartic acid groups (Bursavich and Rich 2002). Potent transition state–mimetic β–secretase inhibitors have been reported by several groups, and the area has been reviewed recently (Hong et al. 2005). OM99–2, a synthesized peptidyl inhibitor of human brain β–secretase (Hong et al. 2005), was utilized to learn the interactions of the β–secretase active site. The inhibitor was bound in the substrate–binding cleft located between the N– and C–terminal lobes. Six of the eight OM99–2 residues (P4 ~ P'2) are bound in the active site of β–secretase in an extended structure and their respective binding sites (S4 ~ S'2) are well–designated by atomic contacts with the inhibitor side.

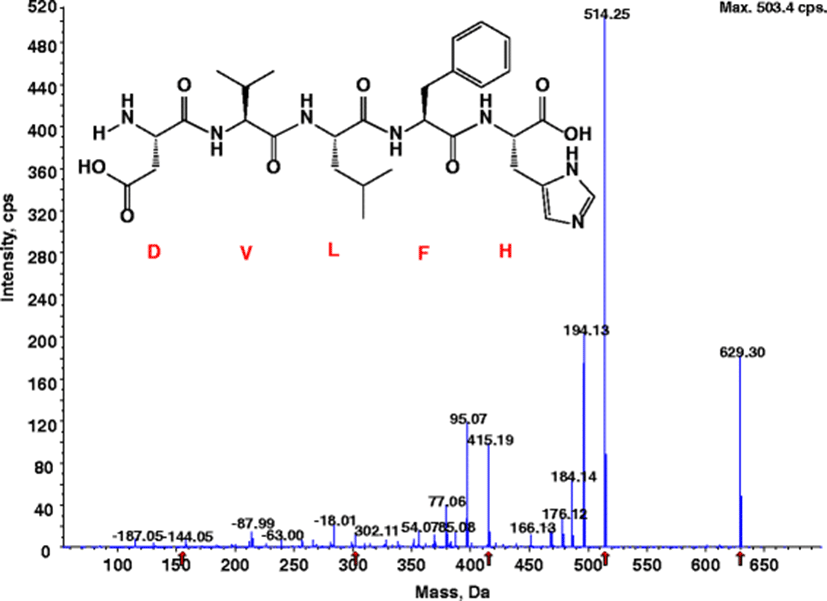

Fig. 3. Identification of molecular weight and amino acid sequence of the purified peptide from SWH24 by HPLC. MS/MS experiments were performed on a Q–TOF tandem mass spectrometer equipped with a nano–ESI source

Download Original Figure

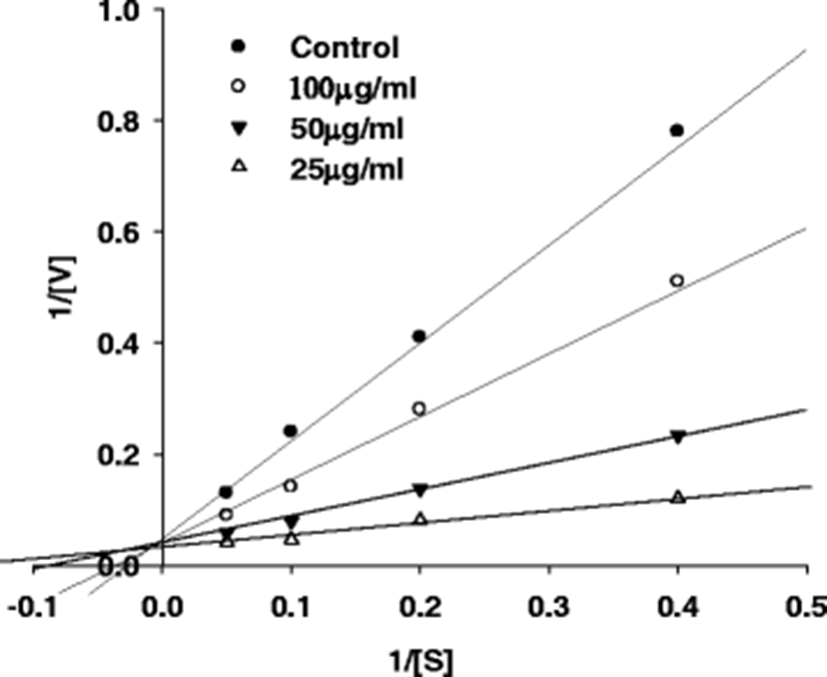

Fig. 4. Lineweaver–burk plots for determining inhibition pattern of the purified inhibitor against β–secretase. The intersection of the three lines on the vertical axis signified that the purified β–secretase inhibitor was a competitive inhibitor

Download Original Figure

The peptide Asp–Val–Leu–Phe–His was purified from SWH24. Based on it, five synthetic peptides were prepared in order to study their β–secretase inhibitory activity relative to their amino acid sequences. They were further purified using a reversed–phase HPLC. The resulting IC₅₀ values of the synthetic peptides are shown in Table 2. Among the synthetic peptides, the IC₅₀ value of Leu–Phe–His was 34.11 μM. Moreover, the IC₅₀ values of the synthetic peptides were improved over the original peptide isolated from SWH24 (Asp–Val–Leu–Phe–His, IC₅₀, 92.70 μM). Synthesized Leu–Phe–His acted competitively according to the Lineweaver–Burk plot (data not shown). In both peptides (Asp–Val–Leu–Phe–His and Leu–Phe–His), leucine is likely to be the important residue for β–secretase inhibition. In the β–secretase inhibitory mechanism, leucine plays an important role in the Swedish mutant APP, which has a mutation at the P2–P1 positions from Lys–Met to Asn–Leu. Generally, β–secretase has eight (P1 ~ P4 and P1' ~ P4') residues that are important in the catalytic domain, determined by its crystal structure. Inhibitory activities against β–secretase when the P2 position was changed to several other amino acids have been described (Hong et al. 2005). In the case of hydrophilic amino acids (Asp, Asn, Glu, and Gln) in the P2 position, the inhibitory activities were weak (β–secretase inhibitory activity of 25–36 %). However, with hydrophobic amino acids like leucine in the P2 position, significant inhibitory activity was present (β–secretase inhibitory activity of >90 %). These results suggested that a hydrophobic interaction at the P2 site of β–secretase was more effective than a hydrophilic one, in spite of the hydrophilic property of the P2 site. Leucine was employed as the P2 moiety for the synthetic β–secretase inhibitor. The isolated and synthesized peptides may not be directly considered as potential drug candidates, since they have relatively groups. However, this is the first report on the β–secretase inhibiting activity of marine organisms. These isolated and synthesized peptides from SWH24 could be useful in the study of the mechanisms of Alzheimer’s disease.
